Three-Stage Electric Height-Adjustable Desk Frame
This 50×80 three-stage electric desk frame provides adjustable-height support for office furniture manufacturers and commercial workspace projects.
- Electric Height Adjustment
Allows convenient switching between seated and standing working positions. - Three-Stage Lifting Columns
Provides a wider height adjustment range for different users and working styles. - 50×80 mm Column Tube Size
The 50×80 specification refers to the lifting column profile and forms part of the frame structure. - Adjustable 1085–1800 mm Frame Width
Supports a wide range of desktop sizes and project configurations. - 575–1255 mm Height Range
Covers both seated and standing workstation heights for flexible daily use. - Desk Frame Only
Supplied without a desktop, allowing users or project designers to select a suitable tabletop separately. - Designed for Long-Hour Workspaces
Supports sit-stand working patterns and helps make extended desk work more comfortable. - Clean Modern Appearance
The white steel frame integrates easily into contemporary office and healthcare environments.
50*80 Three-Stage Electric Height-Adjustable Desk Frame Description
The 50×80 Three-Stage Electric Height-Adjustable Desk Frame is designed for modern offices, healthcare workplaces, and other environments where users spend extended periods working at a desk.
Its electric height-adjustment system allows users to switch between sitting and standing positions according to their working habits and comfort preferences. This flexibility helps reduce the discomfort associated with staying in one position for long periods and supports a more adaptable working setup.

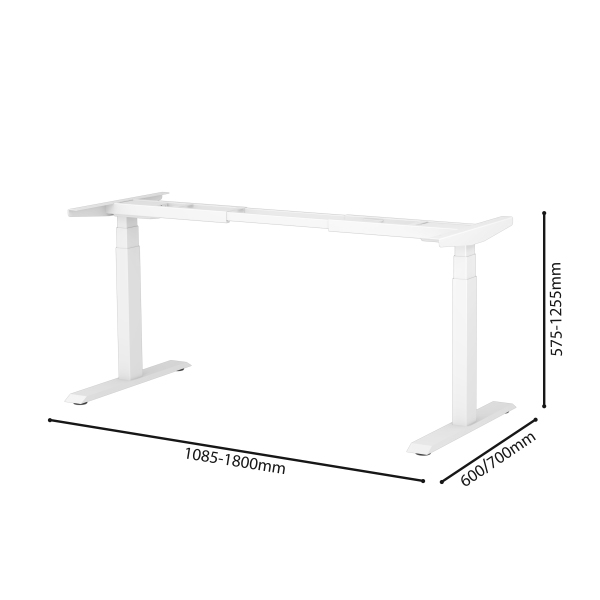

This product is supplied as a desk frame / desk base only and does not include a desktop. The frame width can be adjusted from 1085 to 1800 mm, allowing it to accommodate different desktop sizes. The height adjustment range is 575–1255 mm, making the frame suitable for users of different heights and for both seated and standing work.
The frame uses a three-stage lifting column design. The 50×80 designation refers to the cross-sectional size of the lifting column tube, not the overall desk dimensions.
Electri Height-Adjustable Frame Technical Data sheet
| Item | Specification |
| Product Name | 50×80 Three-Stage Electric Height-Adjustable Desk Frame |
| Product Type | Electric Height-Adjustable Desk Frame / Desk Base |
| Column Tube Size | 50 × 80 mm |
| Column Structure | Three-stage lifting columns |
| Adjustable Frame Width | 1085–1800 mm |
| Recommended Desktop Depth | 600 / 700 mm |
| Height Adjustment Range | 575–1255 mm |
| Adjustment Method | Electric height adjustment |
| Material | Steel frame |
| Color | White / Customizable |
| Desktop | Not included |
| Installation | Floor-standing desk frame |
| Customization | Color, dimensions, and desktop matching options available |
Electric Desk Frame Applications
Suitable for:
- Corporate offices
- Open-plan workspaces
- Hospital administrative offices
- Nurse stations and healthcare work areas
- Medical back-office environments
- Schools and research facilities
- Home offices
- Administrative, finance, design, and other long-hour desk-based roles
- Other workplaces requiring adjustable sit-stand workstations
